FIXED IND 6.8UH 1.38A 110MOHM SM

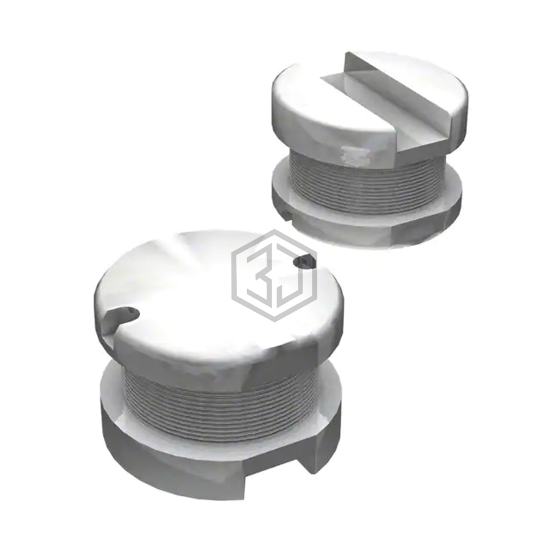

SDR0603-6R8ML is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 6.8UH 1.38A 110MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.38 A.
In Stock: 1,185
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.38 A |
| Current - Saturation (Isat) | 1.8A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 110mOhm Max |
| Q @ Freq | 19 @ 7.96MHz |
| Frequency - Self Resonant | 44MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Height - Seated (Max) | 0.154" (3.90mm) |
