FIXED IND 12UH 1.02A 160MOHM SMD

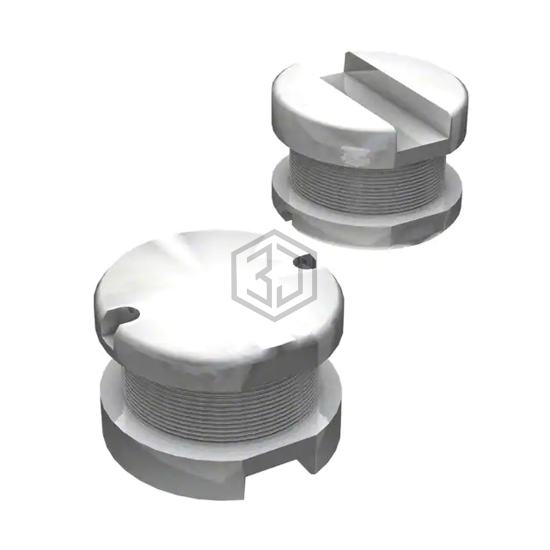

SDR0603-120ML is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 12UH 1.02A 160MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.02 A.
In Stock: 1,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 12 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.02 A |
| Current - Saturation (Isat) | 1.3A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 160mOhm Max |
| Q @ Freq | 23 @ 2.52MHz |
| Frequency - Self Resonant | 30MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Height - Seated (Max) | 0.154" (3.90mm) |
Submit your RFQ for SDR0603-120ML and get a quote within 24 hours.
