FIXED IND 82UH 420MA 1.27OHM SMD

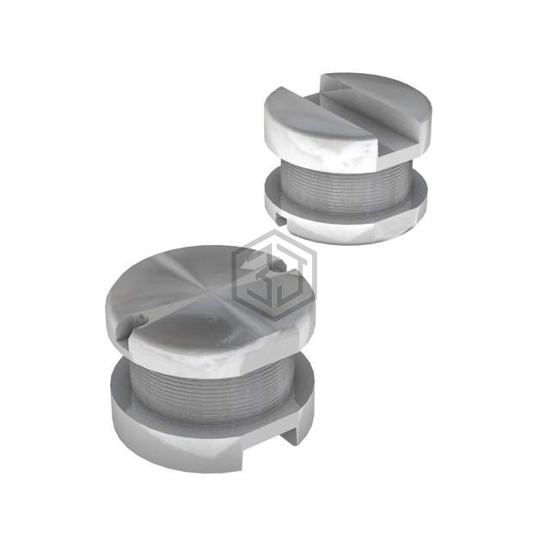

SDR0403-820KL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 82UH 420MA 1.27OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 420 mA.
In Stock: 1,996
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 82 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 420 mA |
| Current - Saturation (Isat) | 580mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.27Ohm Max |
| Q @ Freq | 25 @ 2.52MHz |
| Frequency - Self Resonant | 10MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for SDR0403-820KL and get a quote within 24 hours.
