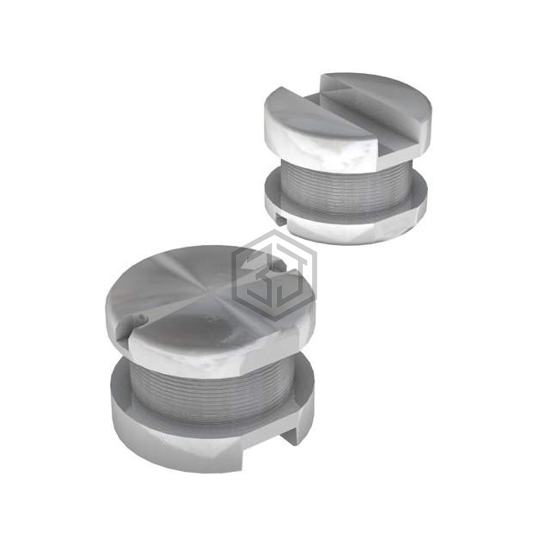

FIXED IND 1.4UH 3.3A 38 MOHM SMD
SDR0403-1R4ML is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 1.4UH 3.3A 38 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.3 A.
In Stock: 18,676
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.4 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.3 A |
| Current - Saturation (Isat) | 5.1A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 38mOhm Max |
| Q @ Freq | 28 @ 7.96MHz |
| Frequency - Self Resonant | 110MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for SDR0403-1R4ML and get a quote within 24 hours.
