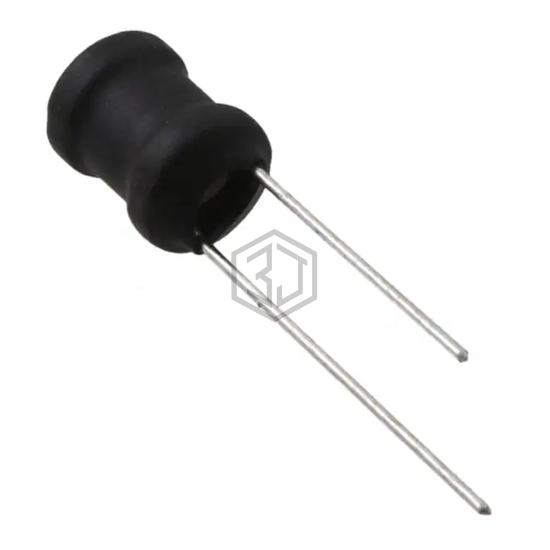

FIXED IND 39MH 80MA 125.5 OHM TH
RLB9012-393KL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 39MH 80MA 125.5 OHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 80 mA.
In Stock: 910
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 39 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 80 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 125.5Ohm Max |
| Q @ Freq | 15 @ 79kHz |
| Frequency - Self Resonant | 150kHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.354" Dia (9.00mm) |
| Height - Seated (Max) | 0.480" (12.20mm) |
Submit your RFQ for RLB9012-393KL and get a quote within 24 hours.
