FIXED IND 680UH 490MA 1.6 OHM TH

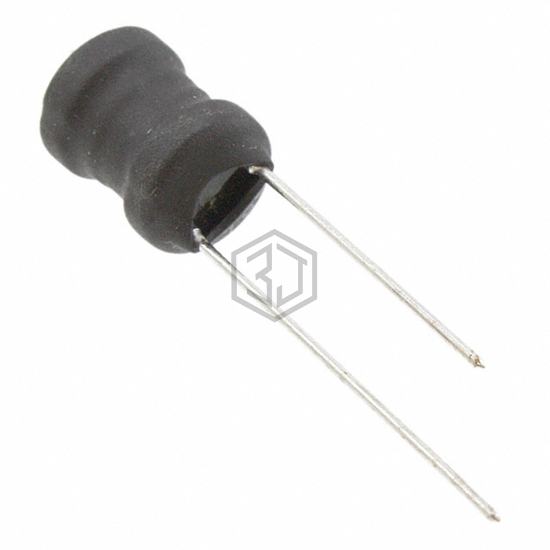

RLB0914-681KL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 680UH 490MA 1.6 OHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case Radial, Vertical Cylinder, current rating (amps) 490 mA.
In Stock: 138,767
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 680 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 490 mA |
| Current - Saturation (Isat) | 900mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.6Ohm Max |
| Q @ Freq | 20 @ 796kHz |
| Frequency - Self Resonant | 1.6MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
Submit your RFQ for RLB0914-681KL and get a quote within 24 hours.
