FIXED IND 2.2UH 5.3A 10 MOHM TH

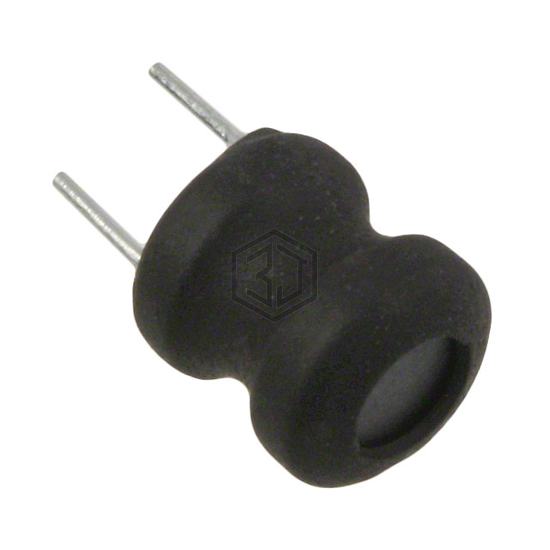

RLB0912-2R2ML is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 2.2UH 5.3A 10 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case Radial, Vertical Cylinder, current rating (amps) 5.3 A.
In Stock: 1,346
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.3 A |
| Current - Saturation (Isat) | 7.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 10mOhm Max |
| Q @ Freq | 30 @ 7.96MHz |
| Frequency - Self Resonant | 63MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
Submit your RFQ for RLB0912-2R2ML and get a quote within 24 hours.
