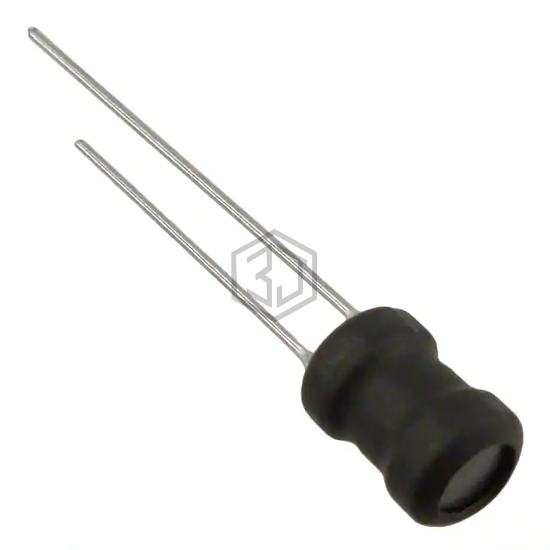

FIXED IND 4.7MH 50MA 16 OHM TH
RLB0812-472KL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 4.7MH 50MA 16 OHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case Radial, Vertical Cylinder, current rating (amps) 50 mA.
In Stock: 2,851
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 50 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 16Ohm Max |
| Q @ Freq | 60 @ 252kHz |
| Frequency - Self Resonant | 500kHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 252 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.264" Dia (6.70mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
Submit your RFQ for RLB0812-472KL and get a quote within 24 hours.
