FIXED IND 150UH 275MA 2.1 OHM TH

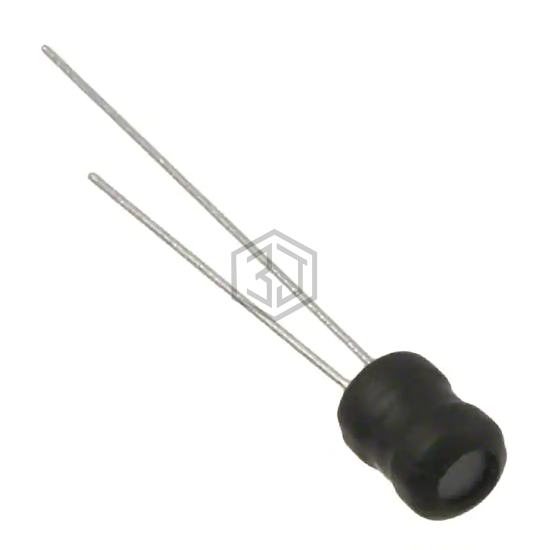

RLB0608-151KL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 150UH 275MA 2.1 OHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case Radial, Vertical Cylinder, current rating (amps) 275 mA.
In Stock: 1,435
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 150 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 275 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.1Ohm Max |
| Q @ Freq | 50 @ 796kHz |
| Frequency - Self Resonant | 4.4MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
Submit your RFQ for RLB0608-151KL and get a quote within 24 hours.
