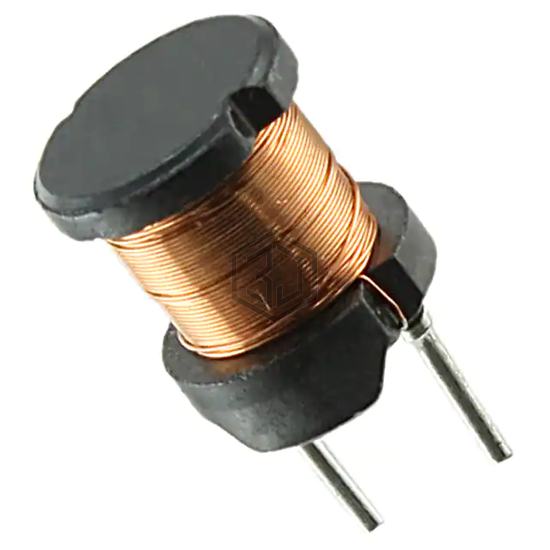

FIXED IND 5.6MH 120MA 11.5OHM TH
RL895-562K-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 5.6MH 120MA 11.5OHM TH. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, package / case Radial, Vertical Cylinder (Open), current rating (amps) 120 mA.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 5.6 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 120 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 11.5Ohm Max |
| Q @ Freq | 50 @ 252kHz |
| Frequency - Self Resonant | 550kHz |
| Ratings | - |
| Operating Temperature | -30°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
