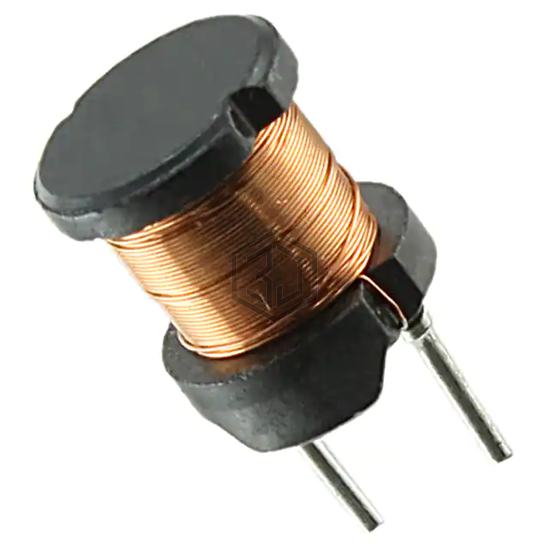

FIXED IND 10UH 2.6A 40 MOHM TH
RL895-100M-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 10UH 2.6A 40 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, package / case Radial, Vertical Cylinder (Open), current rating (amps) 2.6 A.
In Stock: 1,937
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.6 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 40mOhm Max |
| Q @ Freq | 40 @ 2.52MHz |
| Frequency - Self Resonant | 14MHz |
| Ratings | - |
| Operating Temperature | -30°C ~ 100°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
Submit your RFQ for RL895-100M-RC and get a quote within 24 hours.
