FIXED IND 3.9MH 120MA 12.9OHM TH

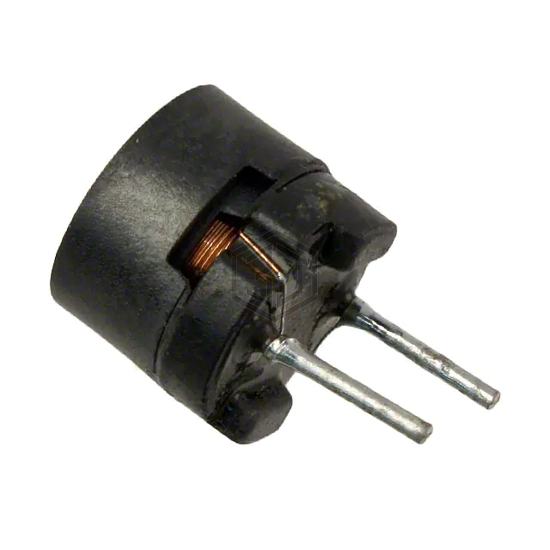

RL875S-392K-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 3.9MH 120MA 12.9OHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case Radial, Vertical Cylinder, current rating (amps) 120 mA.
In Stock: 262
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.9 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 120 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 12.9Ohm Max |
| Q @ Freq | 95 @ 252kHz |
| Frequency - Self Resonant | 1MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
Submit your RFQ for RL875S-392K-RC and get a quote within 24 hours.
