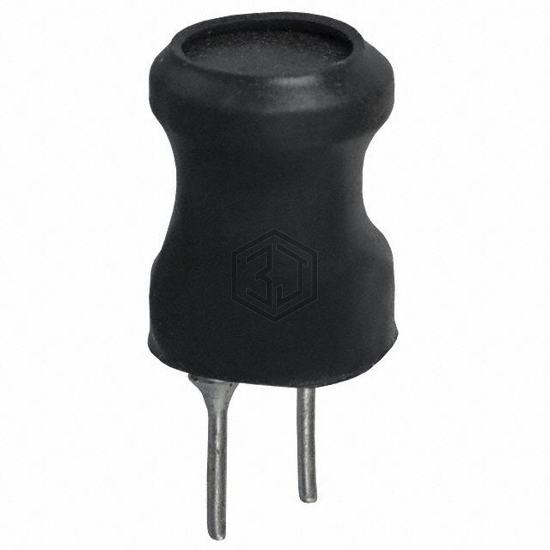

FIXED IND 15UH 2.3A 56 MOHM TH
RL622-150K-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 15UH 2.3A 56 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, package / case Radial, Vertical Cylinder, current rating (amps) 2.3 A.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 15 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 2.3 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 56mOhm Max |
| Q @ Freq | 40 @ 2.52MHz |
| Frequency - Self Resonant | 12MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.335" Dia (8.50mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
Submit your RFQ for RL622-150K-RC and get a quote within 24 hours.
