FIXED IND 10MH 20MA 55 OHM TH

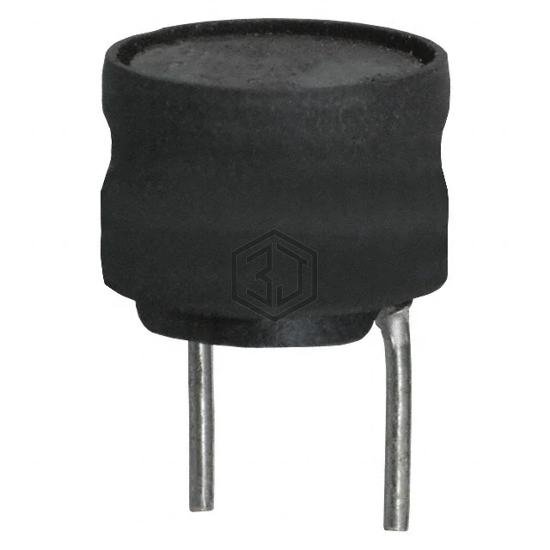

RL262-103J-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 10MH 20MA 55 OHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, package / case Radial, Vertical Cylinder, current rating (amps) 20 mA.
In Stock: 722
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 mH |
| Tolerance | ±5% |
| Current Rating (Amps) | 20 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 55Ohm Max |
| Q @ Freq | 60 @ 79.6kHz |
| Frequency - Self Resonant | 600kHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 79.6 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
