FIXED IND 82MH 10MA 71 OHM TH

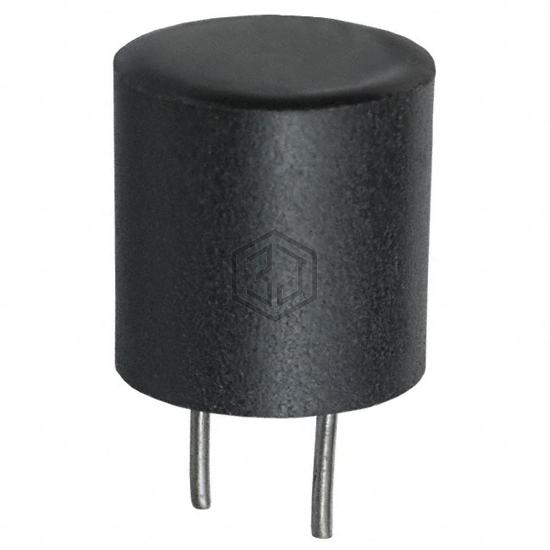

RL181S-823J-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 82MH 10MA 71 OHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, package / case Radial, Vertical Cylinder, current rating (amps) 10 mA.
In Stock: 189
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 82 mH |
| Tolerance | ±5% |
| Current Rating (Amps) | 10 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 71Ohm Max |
| Q @ Freq | 100 @ 50kHz |
| Frequency - Self Resonant | 90kHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.413" Dia (10.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
Submit your RFQ for RL181S-823J-RC and get a quote within 24 hours.
