RES SMD 680 OHM 5% 1W 2615

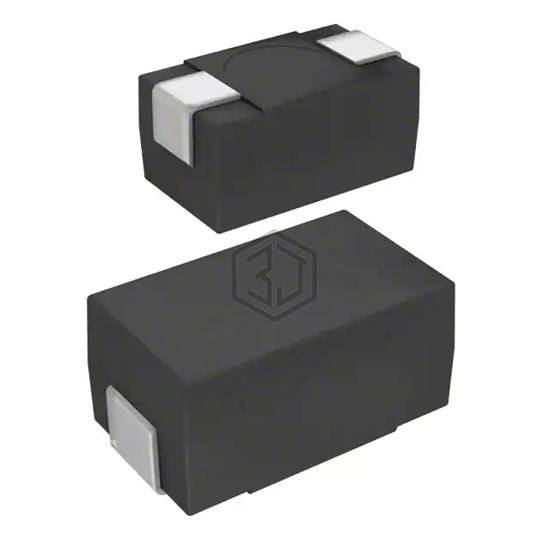

PWR2615W6800J is a Chip Resistor - Surface Mount manufactured by Bourns Inc.. RES SMD 680 OHM 5% 1W 2615. Key specifications: operating temperature -55°C ~ 275°C, package / case 2615 J-Lead, size / dimension 0.260" L x 0.154" W (6.60mm x 3.90mm), power (watts) 1W.
In Stock: 8,205
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 680 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 1W |
| Composition | Wirewound |
| Features | Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±20ppm/°C |
| Operating Temperature | -55°C ~ 275°C |
| Package / Case | 2615 J-Lead |
| Supplier Device Package | - |
| Ratings | - |
| Size / Dimension | 0.260" L x 0.154" W (6.60mm x 3.90mm) |
| Height - Seated (Max) | 0.142" (3.60mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| S2-680RF1 | Riedon | RES SMD 680 OHM 1% 1W 2615 | 100% | View |
| S2-680RJ8 | Riedon | RES SMD 680 OHM 5% 1W 2615 | 100% | View |
| PWR4525W6800J | Bourns Inc. | RES SMD 680 OHM 5% 2W 4525 | 64% | View |
| PWR4525W6800JE | Bourns Inc. | RES SMD 680 OHM 5% 2W 4525 | 64% | View |
| S5-680RJ8 | Riedon | RES SMD 680 OHM 5% 4W 8230 | 64% | View |
| S5-680RF1 | Riedon | RES SMD 680 OHM 1% 4W 8230 | 64% | View |
Submit your RFQ for PWR2615W6800J and get a quote within 24 hours.
