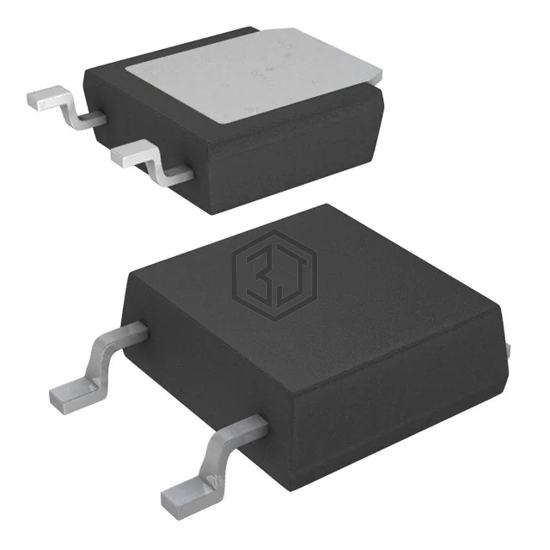

RES SMD 56K OHM 1% 25W DPAK
PWR163S-25-5602F is a Chip Resistor - Surface Mount manufactured by Bourns Inc.. RES SMD 56K OHM 1% 25W DPAK. Key specifications: operating temperature -55°C ~ 155°C, package / case TO-252-3, DPak (2 Leads + Tab), SC-63, size / dimension 0.320" L x 0.324" W (8.13mm x 8.22mm), ratings AEC-Q200.
In Stock: 9,244
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 56 kOhms |
| Tolerance | ±1% |
| Power (Watts) | 25W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.320" L x 0.324" W (8.13mm x 8.22mm) |
| Height - Seated (Max) | 0.125" (3.17mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RMCP1206FT56K0 | Stackpole Electronics Inc | RES, 1206, 56 KOHM, 1%, 0.5W | 64% | View |
| CRCW060356K0JNEA | Vishay Dale | RES SMD 56K OHM 5% 1/10W 0603 | 64% | View |
| CRCW080556K0FKTC | Vishay Dale | RES SMD 56K OHM 1% 1/8W 0805 | 64% | View |
| ERJ-U12D5602U | Panasonic Electronic Components | 1812 ANTI-SULFUR RES. , 0.5%, 56 | 64% | View |
| RMCP0805FT56K0 | Stackpole Electronics Inc | RES, 0805, 56 KOHM, 1%, 0.33W | 64% | View |
| ERJ-UP8J563V | Panasonic Electronic Components | 1206 ANTI-SULFUR 0.66W, 5%, 56KO | 64% | View |
Submit your RFQ for PWR163S-25-5602F and get a quote within 24 hours.
