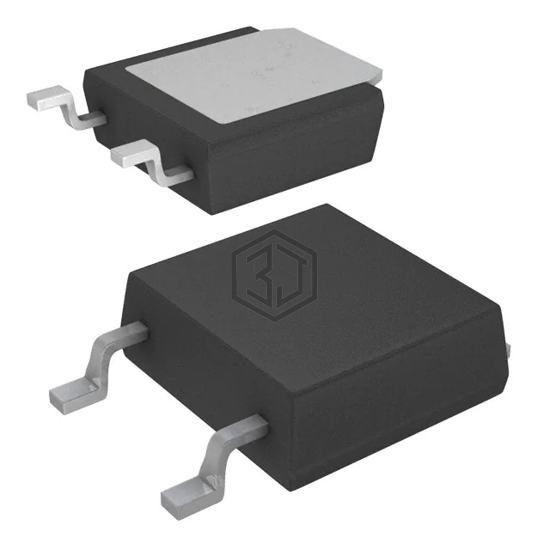

RES SMD 560 OHM 5% 25W DPAK
PWR163S-25-5600J is a Chip Resistor - Surface Mount manufactured by Bourns Inc.. RES SMD 560 OHM 5% 25W DPAK. Key specifications: operating temperature -55°C ~ 155°C, package / case TO-252-3, DPak (2 Leads + Tab), SC-63, size / dimension 0.320" L x 0.324" W (8.13mm x 8.22mm), ratings AEC-Q200.
In Stock: 6,212
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 25W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.320" L x 0.324" W (8.13mm x 8.22mm) |
| Height - Seated (Max) | 0.125" (3.17mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CRCW0805560RFKEBC | Vishay Dale | RES 560 OHM 1% 1/8W 0805 | 64% | View |
| AC2010FK-07560RL | YAGEO | RES SMD 560 OHM 1% 3/4W 2010 | 64% | View |
| RK73H2ARTTD5600F | KOA Speer Electronics, Inc. | ANTI SULFURATION PRECISION CHIP | 64% | View |
| RS73G2ATTD5600C | KOA Speer Electronics, Inc. | RES 560 OHM 0.25% 1/4W 0805 | 64% | View |
| CRGH0603J560R | TE Connectivity Passive Product | RES SMD 560 OHM 5% 1/5W 0603 | 64% | View |
| ERJ-U08D5600V | Panasonic Electronic Components | 1206 ANTI-SULFUR RES. , 0.5%, 56 | 64% | View |
Submit your RFQ for PWR163S-25-5600J and get a quote within 24 hours.
