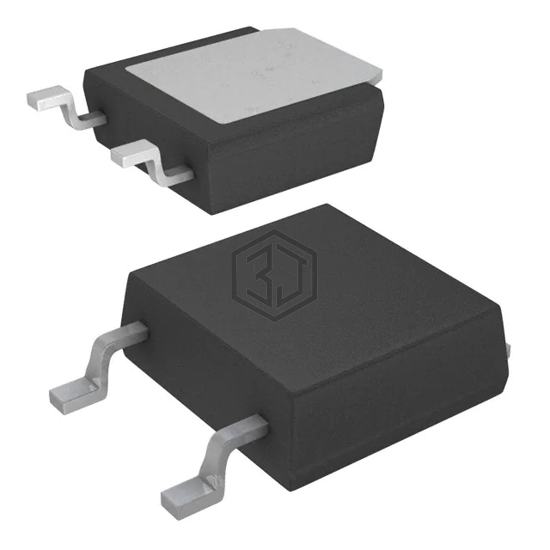

RES 560 OHM 1% 25W D2PAK
PWR163S-25-5600F is a Chip Resistor - Surface Mount manufactured by Bourns Inc.. RES 560 OHM 1% 25W D2PAK. Key specifications: operating temperature -55°C ~ 155°C, package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, size / dimension 0.320" L x 0.324" W (8.13mm x 8.22mm), ratings AEC-Q200.
In Stock: 1,406
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 25W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.320" L x 0.324" W (8.13mm x 8.22mm) |
| Height - Seated (Max) | 0.125" (3.17mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ERJ-U6RD5600V | Panasonic Electronic Components | RES 560 OHM 0.5% 1/8W 0805 SMD | 64% | View |
| WR12X5600FTL | Walsin Technology Corporation | RES 560 OHM 1% 1/4W 1206 | 64% | View |
| RCP0505W560RJET | Vishay Dale | RES SMD 560 OHM 5% 1.4W 0505 | 64% | View |
| RPC2512JT560R | Stackpole Electronics Inc | RES 560 OHM 5% 1.5W 2512 | 64% | View |
| AC0603FR-07560RL | YAGEO | RES SMD 560 OHM 1% 1/10W 0603 | 64% | View |
| RK73B2BTTD561J | KOA Speer Electronics, Inc. | RES 560 OHM 5% 1/4W 1206 | 64% | View |
Submit your RFQ for PWR163S-25-5600F and get a quote within 24 hours.
