FIXED IND 1UH 30A 1.2 MOHM SMD

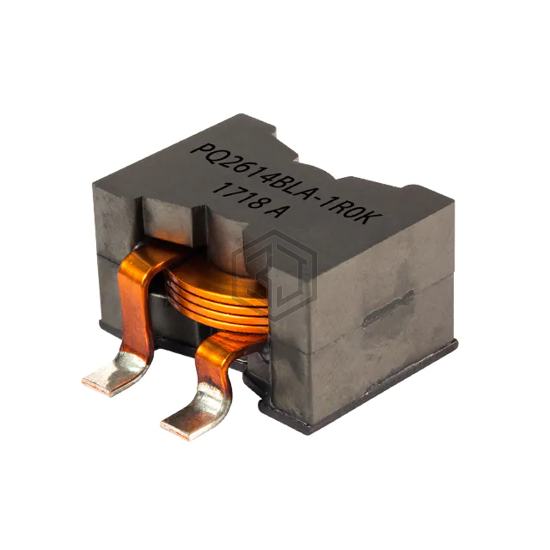

PQ2614BLA-1R0K is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 1UH 30A 1.2 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 155°C, package / case Nonstandard, current rating (amps) 30 A.
In Stock: 1,163
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 30 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 61MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.098" L x 0.780" W (27.90mm x 19.80mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
