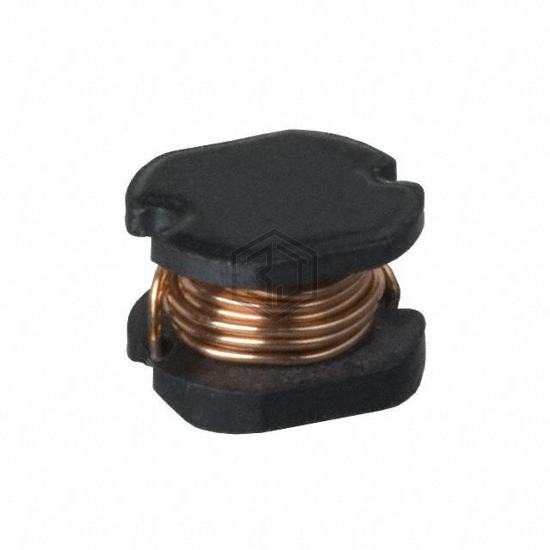

FIXED IND 68UH 460MA 1.12OHM SMD
PM43-680K-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 68UH 460MA 1.12OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 460 mA.
In Stock: 32
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 68 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 460 mA |
| Current - Saturation (Isat) | 680mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.12Ohm |
| Q @ Freq | 20 @ 2.52MHz |
| Frequency - Self Resonant | 11MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
