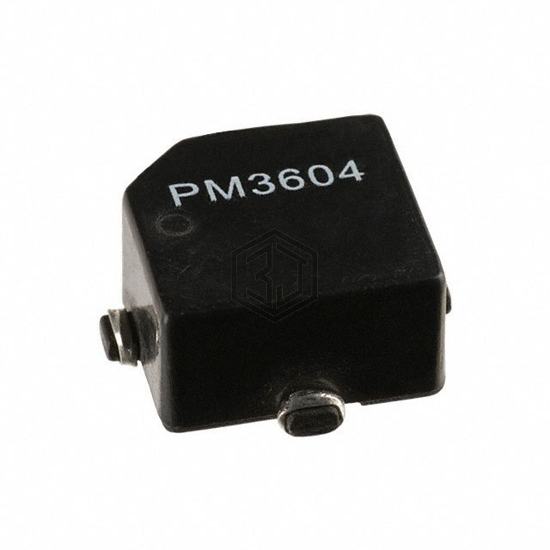

INDUCT ARRAY 2 COIL 20UH SMD
PM3604-20-RC is a Arrays, Signal Transformers manufactured by Bourns Inc.. INDUCT ARRAY 2 COIL 20UH SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, size / dimension 0.550" L x 0.452" W (13.97mm x 11.48mm).
In Stock: 2,028
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 20 µH |
| Inductance - Connected In Series | 80 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 2.02 A |
| Current Rating - Series | 1.01 A |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 49mOhm Max |
| DC Resistance (DCR) - Series | 200mOhm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.550" L x 0.452" W (13.97mm x 11.48mm) |
| Height | 0.265" (6.73mm) |
