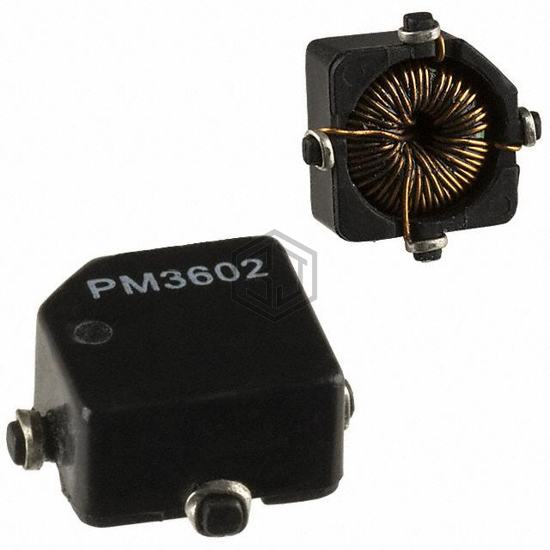

INDUCT ARRAY 2 COIL 5UH SMD
PM3602-5-RC is a Arrays, Signal Transformers manufactured by Bourns Inc.. INDUCT ARRAY 2 COIL 5UH SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, size / dimension 0.452" L x 0.354" W (11.48mm x 8.99mm).
In Stock: 4,086
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 5 µH |
| Inductance - Connected In Series | 20 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 2.41 A |
| Current Rating - Series | 1.2 A |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 23mOhm Max |
| DC Resistance (DCR) - Series | 92mOhm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.452" L x 0.354" W (11.48mm x 8.99mm) |
| Height | 0.225" (5.72mm) |
Submit your RFQ for PM3602-5-RC and get a quote within 24 hours.
