FIXED IND 5.6UH 1.1A 160MOHM SMD

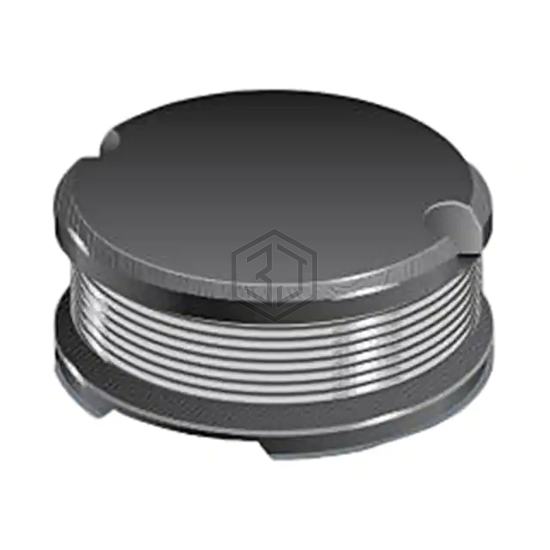

PM32-5R6M-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 5.6UH 1.1A 160MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.1 A.
In Stock: 2,689
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.1 A |
| Current - Saturation (Isat) | 1.3A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 160mOhm Max |
| Q @ Freq | 18 @ 7.96MHz |
| Frequency - Self Resonant | 42MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.110" W (3.00mm x 2.80mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
Submit your RFQ for PM32-5R6M-RC and get a quote within 24 hours.
