FIXED IND 27UH 480MA 480MOHM SMD

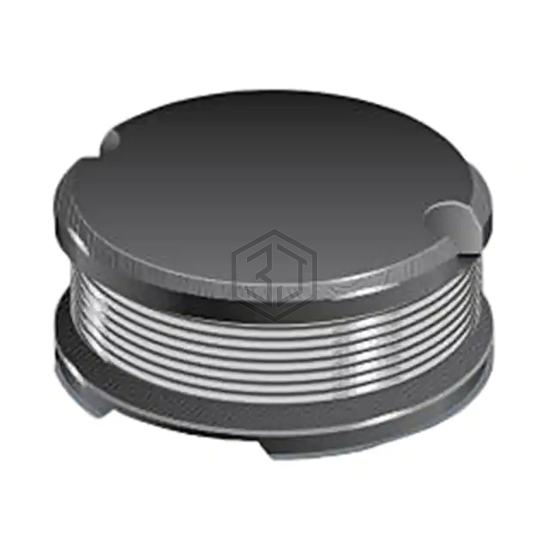

PM32-270M-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 27UH 480MA 480MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 480 mA.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 27 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 480 mA |
| Current - Saturation (Isat) | 550mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 480mOhm Max |
| Q @ Freq | 23 @ 2.52MHz |
| Frequency - Self Resonant | 20MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.110" W (3.00mm x 2.80mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
Submit your RFQ for PM32-270M-RC and get a quote within 24 hours.
