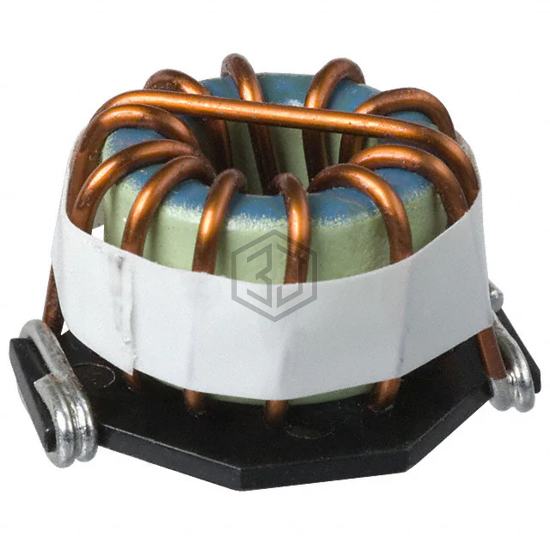

FIXED IND 150UH 5.5A 43 MOHM SMD
PM2120-151K-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 150UH 5.5A 43 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, package / case Nonstandard, current rating (amps) 5.5 A.
In Stock: 1,569
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Iron |
| Inductance | 150 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 5.5 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 43mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.201" L x 1.000" W (30.50mm x 25.40mm) |
| Height - Seated (Max) | 0.870" (22.10mm) |
Submit your RFQ for PM2120-151K-RC and get a quote within 24 hours.
