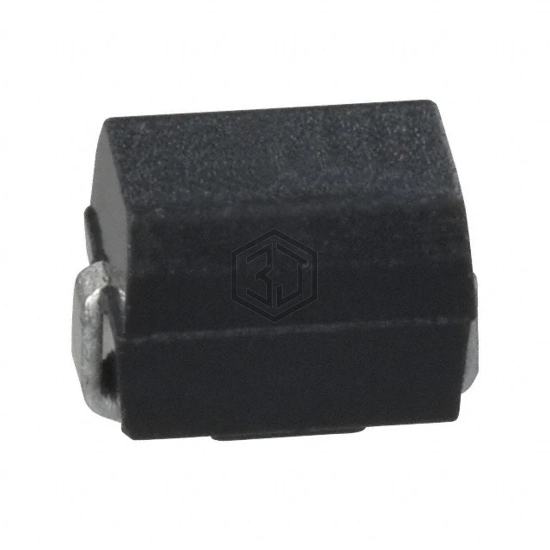

FIXED IND 56UH 135MA 5.5 OHM SMD
PM1812-560J-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 56UH 135MA 5.5 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, package / case 1812 (4532 Metric), current rating (amps) 135 mA.
In Stock: 102
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 56 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 135 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 5.5Ohm Max |
| Q @ Freq | 50 @ 2.52MHz |
| Frequency - Self Resonant | 9MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
