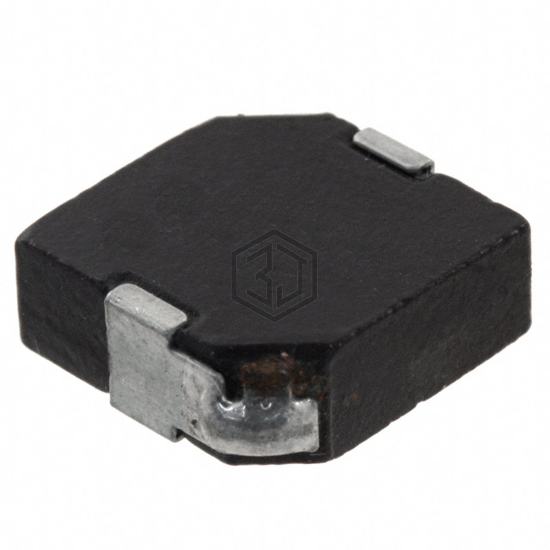

FIXED IND 1.2UH 27A 3.3 MOHM SMD
PM12645S-1R2M-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 1.2UH 27A 3.3 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 27 A.
In Stock: 55
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron |
| Inductance | 1.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 27 A |
| Current - Saturation (Isat) | 49A |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.547" L x 0.531" W (13.90mm x 13.50mm) |
| Height - Seated (Max) | 0.232" (5.90mm) |
Submit your RFQ for PM12645S-1R2M-RC and get a quote within 24 hours.
