FIXED IND 1UH 230MA 690 MOHM SMD

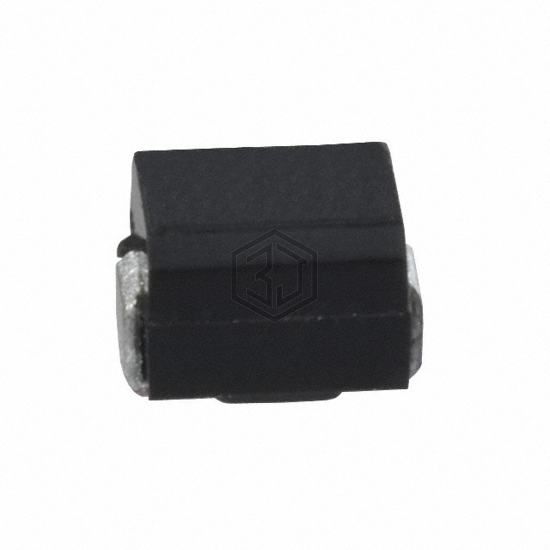

PM1210-1R0J-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 1UH 230MA 690 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1210 (3225 Metric), current rating (amps) 230 mA.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 230 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 690mOhm Max |
| Q @ Freq | 30 @ 7.96MHz |
| Frequency - Self Resonant | 115MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.087" (2.20mm) |
Submit your RFQ for PM1210-1R0J-RC and get a quote within 24 hours.
