FIXED IND 270UH 410MA 870MOHM SM

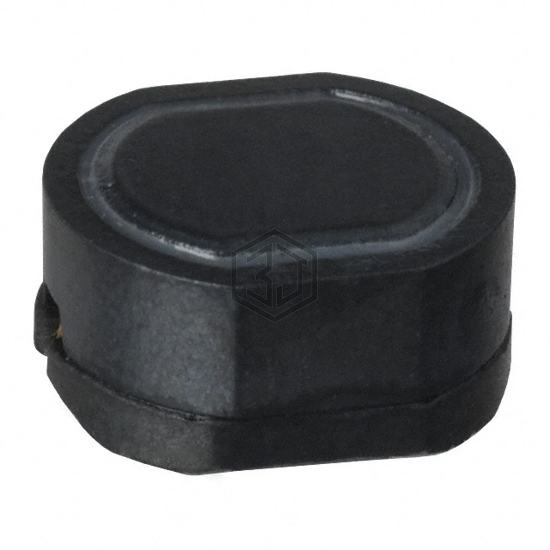

PM105SB-271K-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 270UH 410MA 870MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 410 mA.
In Stock: 300
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 270 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 410 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 870mOhm Max |
| Q @ Freq | 30 @ 796kHz |
| Frequency - Self Resonant | 5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.390" L x 0.390" W (9.90mm x 9.90mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
Submit your RFQ for PM105SB-271K-RC and get a quote within 24 hours.
