FIXED IND 10UH 780MA 1 OHM SMD

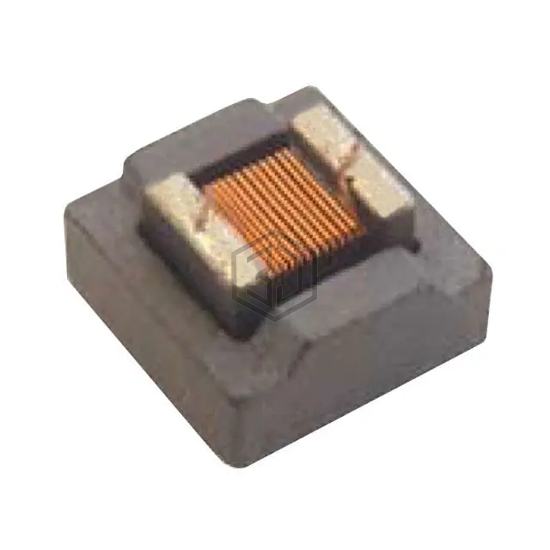

PM1008S-100M-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 10UH 780MA 1 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 780 mA.
In Stock: 87
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 780 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 1Ohm Max |
| Q @ Freq | 38 @ 1MHz |
| Frequency - Self Resonant | 105MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.150" L x 0.150" W (3.81mm x 3.81mm) |
| Height - Seated (Max) | 0.108" (2.74mm) |
Submit your RFQ for PM1008S-100M-RC and get a quote within 24 hours.
