FIXED IND 820NH 360MA 1.61OHM SM

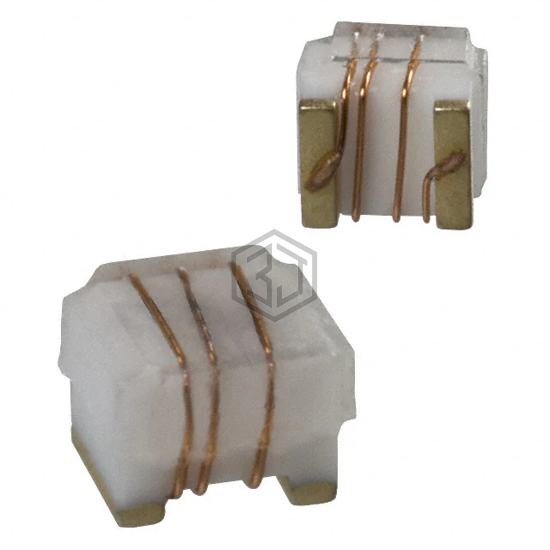

PM1008-R82K-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 820NH 360MA 1.61OHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1008 (2520 Metric), current rating (amps) 360 mA.
In Stock: 46
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 820 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 360 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.61Ohm |
| Q @ Freq | 45 @ 100MHz |
| Frequency - Self Resonant | 350MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
Submit your RFQ for PM1008-R82K-RC and get a quote within 24 hours.
