FIXED IND 6.8NH 600MA 60MOHM SMD

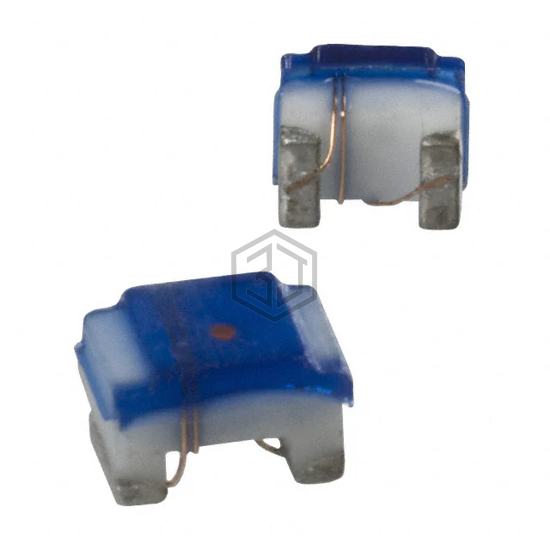

PM0805-6N8M-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 6.8NH 600MA 60MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0805 (2012 Metric), current rating (amps) 600 mA.
In Stock: 1,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Alumina |
| Inductance | 6.8 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 60mOhm |
| Q @ Freq | 60 @ 1GHz |
| Frequency - Self Resonant | 5.8GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
Submit your RFQ for PM0805-6N8M-RC and get a quote within 24 hours.
