FIXED IND 56NH 600MA 310MOHM SMD

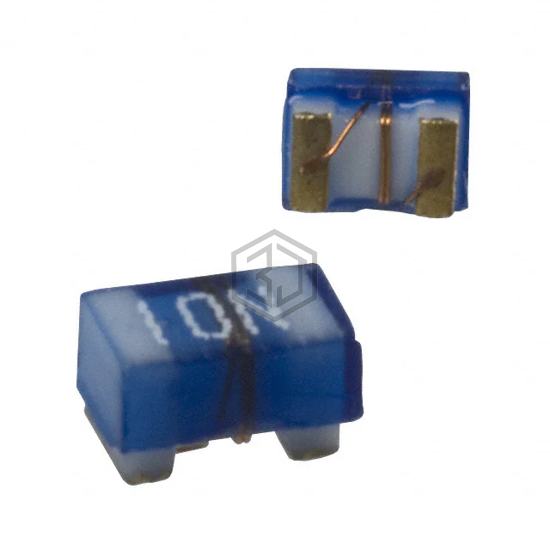

PM0603-56NJ-RC is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 56NH 600MA 310MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0603 (1608 Metric), current rating (amps) 600 mA.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Alumina |
| Inductance | 56 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 310mOhm |
| Q @ Freq | 35 @ 250MHz |
| Frequency - Self Resonant | 1.9GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 200 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.065" L x 0.041" W (1.65mm x 1.05mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for PM0603-56NJ-RC and get a quote within 24 hours.
