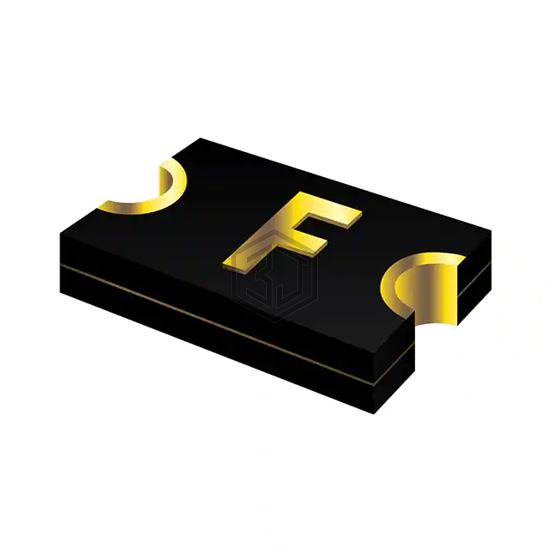

PTC RESET FUSE 16V 750MA 1210
MF-USHT075KX-2 is a PTC Resettable Fuses manufactured by Bourns Inc.. PTC RESET FUSE 16V 750MA 1210. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1210 (3225 Metric), Concave, current - max 20 A.
In Stock: 3,071
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 16V |
| Current - Max | 20 A |
| Current - Hold (Ih) (Max) | 750 mA |
| Current - Trip (It) | 3.75 A |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | 100 mOhms |
| Resistance - Post Trip (R1) (Max) | 1 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric), Concave |
| Size / Dimension | 0.127" L x 0.101" W (3.22mm x 2.58mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.047" (1.20mm) |
| Lead Spacing | - |
Submit your RFQ for MF-USHT075KX-2 and get a quote within 24 hours.
