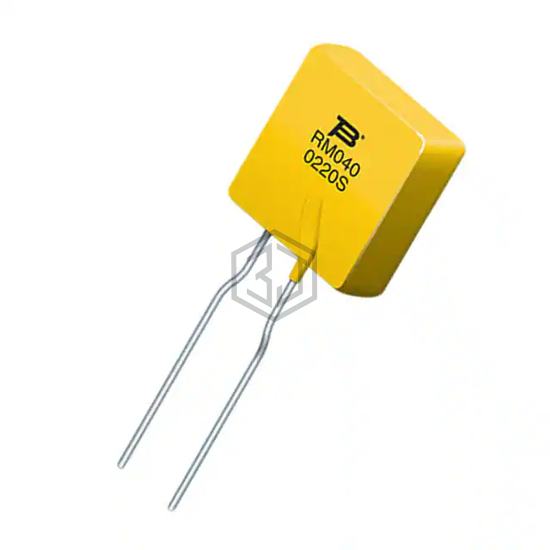

PTC RESET FUSE 240V 400MA RADIAL
MF-RM040/240-2 is a PTC Resettable Fuses manufactured by Bourns Inc.. PTC RESET FUSE 240V 400MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, package / case Radial, Disc, current - max 5.5 A.
In Stock: 3,331
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 240V (265V Int) |
| Current - Max | 5.5 A |
| Current - Hold (Ih) (Max) | 400 mA |
| Current - Trip (It) | 900 mA |
| Time to Trip | 24 s |
| Resistance - Initial (Ri) (Min) | 600 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.9 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -20°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.453" L x 0.150" W (11.50mm x 3.80mm) |
| Height - Seated (Max) | 0.823" (20.90mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.114" (2.90mm) |
Submit your RFQ for MF-RM040/240-2 and get a quote within 24 hours.
