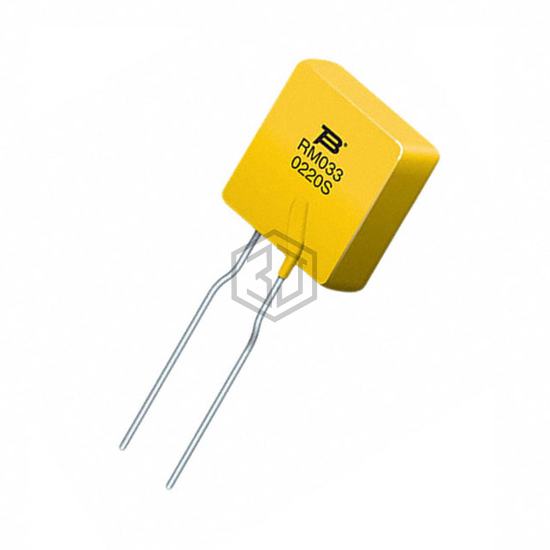

PTC RESET FUSE 240V 330MA RADIAL
MF-RM033/240-2 is a PTC Resettable Fuses manufactured by Bourns Inc.. PTC RESET FUSE 240V 330MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, package / case Radial, Disc, current - max 4.5 A.
In Stock: 8,709
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 240V (265V Int) |
| Current - Max | 4.5 A |
| Current - Hold (Ih) (Max) | 330 mA |
| Current - Trip (It) | 740 mA |
| Time to Trip | 21 s |
| Resistance - Initial (Ri) (Min) | 770 mOhms |
| Resistance - Post Trip (R1) (Max) | 2.6 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -20°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.449" L x 0.150" W (11.40mm x 3.80mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.114" (2.90mm) |
