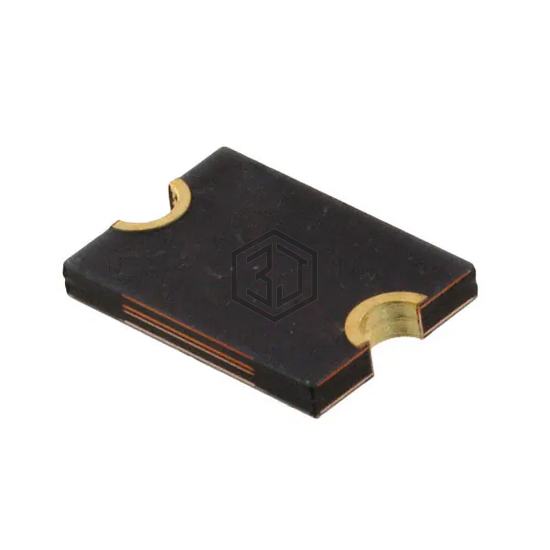

PTC RESET FUSE 6V 3A 2920
MF-LSMF300X-2 is a PTC Resettable Fuses manufactured by Bourns Inc.. PTC RESET FUSE 6V 3A 2920. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 2920 (7351 Metric), Concave, current - max 40 A.
In Stock: 1,550
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 6V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 3 A |
| Current - Trip (It) | 5 A |
| Time to Trip | 20 s |
| Resistance - Initial (Ri) (Min) | 15 mOhms |
| Resistance - Post Trip (R1) (Max) | 48 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 2920 (7351 Metric), Concave |
| Size / Dimension | 0.290" L x 0.202" W (7.36mm x 5.12mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.033" (0.85mm) |
| Lead Spacing | - |
Submit your RFQ for MF-LSMF300X-2 and get a quote within 24 hours.
