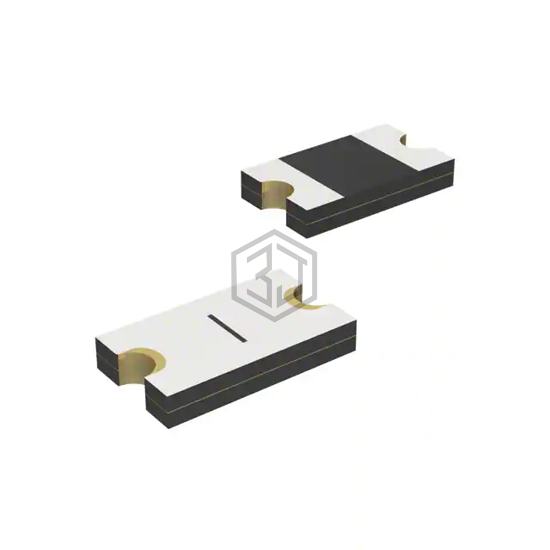

PTC RESET FUSE 9V 200MA 0603
MF-FSMF020X-2 is a PTC Resettable Fuses manufactured by Bourns Inc.. PTC RESET FUSE 9V 200MA 0603. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0603 (1608 Metric), Concave, current - max 40 A.
In Stock: 681
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 9V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Trip (It) | 500 mA |
| Time to Trip | 600 ms |
| Resistance - Initial (Ri) (Min) | 550 mOhms |
| Resistance - Post Trip (R1) (Max) | 3.5 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric), Concave |
| Size / Dimension | 0.065" L x 0.033" W (1.65mm x 0.85mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.026" (0.65mm) |
| Lead Spacing | - |
Submit your RFQ for MF-FSMF020X-2 and get a quote within 24 hours.
