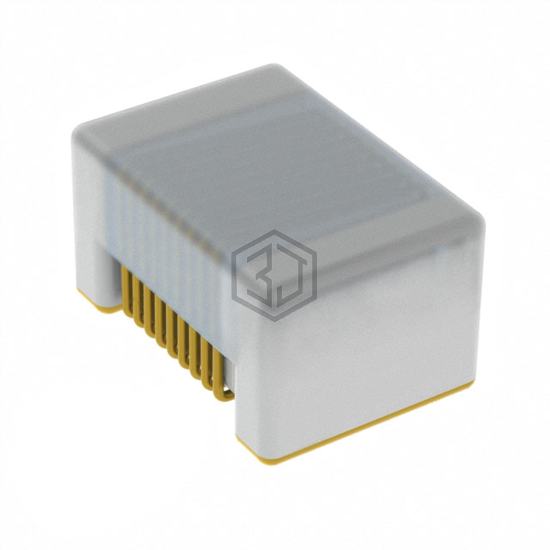

FIXED IND 180NH 250MA 1 OHM SMD
CW161009A-R18J is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 180NH 250MA 1 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0603 (1608 Metric), current rating (amps) 250 mA.
In Stock: 8,460
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ceramic |
| Inductance | 180 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 250 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1Ohm Max |
| Q @ Freq | 25 @ 100MHz |
| Frequency - Self Resonant | 990MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.065" L x 0.045" W (1.65mm x 1.15mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
Submit your RFQ for CW161009A-R18J and get a quote within 24 hours.
