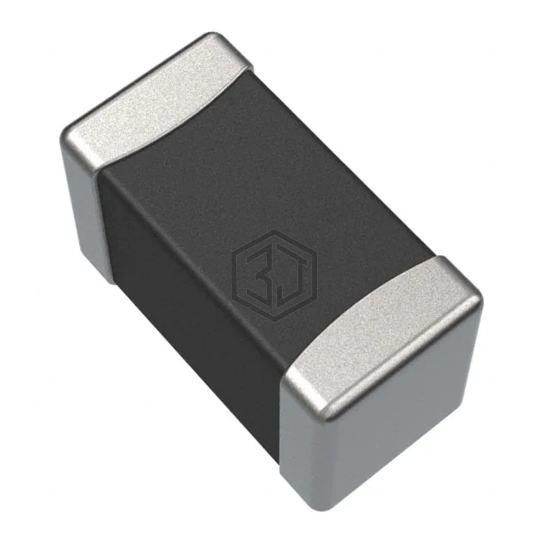

FIXED IND 240NH 1.2A 125MOHM SMD
CVH160808-R24M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 240NH 1.2A 125MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0603 (1608 Metric), current rating (amps) 1.2 A.
In Stock: 135
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 240 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.2 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 125mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 90MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.037" (0.95mm) |
Submit your RFQ for CVH160808-R24M and get a quote within 24 hours.
