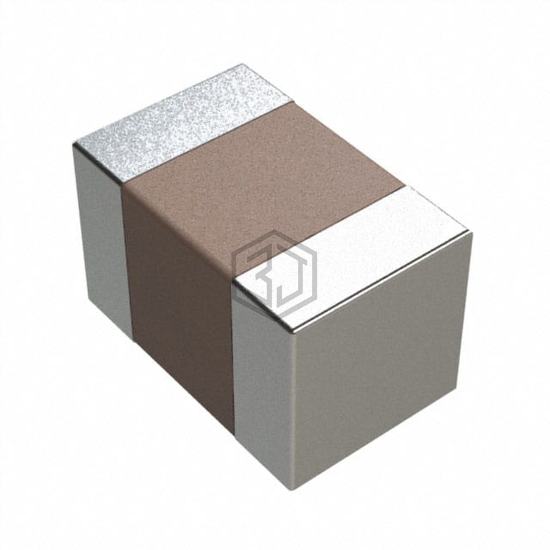

FIXED IND 3.3UH 30MA 800MOHM SMD
CV201210-3R3K is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 3.3UH 30MA 800MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0805 (2012 Metric), current rating (amps) 30 mA.
In Stock: 12,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 30 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 800mOhm Max |
| Q @ Freq | 45 @ 10MHz |
| Frequency - Self Resonant | 41MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 10 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.057" (1.45mm) |
Submit your RFQ for CV201210-3R3K and get a quote within 24 hours.
