FIXED IND 100NH 200MA 250MOHM SM

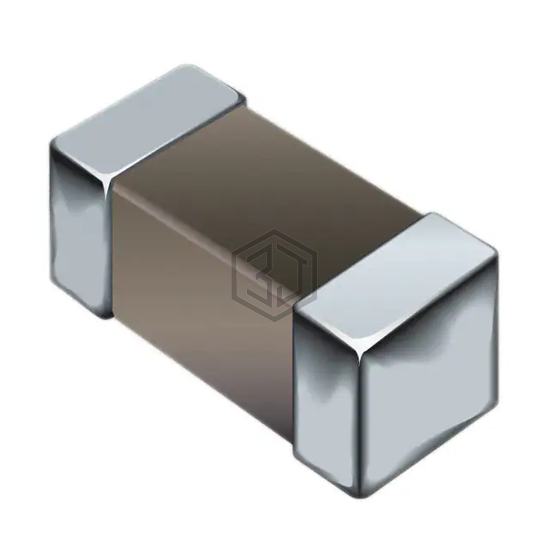

CS160808-R10K is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 100NH 200MA 250MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0603 (1608 Metric), current rating (amps) 200 mA.
In Stock: 380
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 100 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 200 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 250mOhm Max |
| Q @ Freq | 30 @ 25MHz |
| Frequency - Self Resonant | 240MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.037" (0.95mm) |
Submit your RFQ for CS160808-R10K and get a quote within 24 hours.
