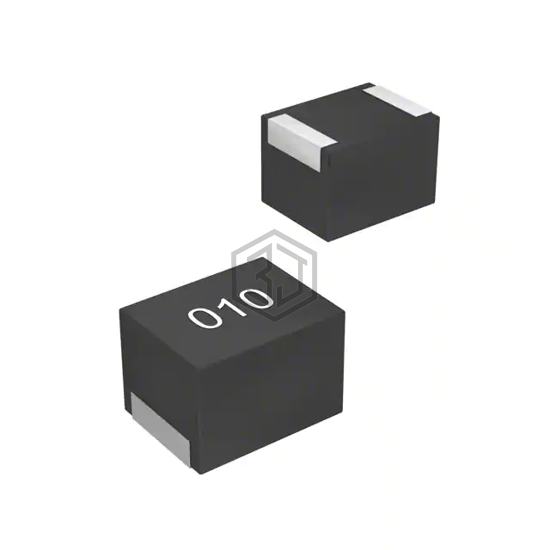

FIXED IND 10UH 150MA 2.1 OHM SMD
CMH322522-100KL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 10UH 150MA 2.1 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1210 (3225 Metric), current rating (amps) 150 mA.
In Stock: 1,884
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 150 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.1Ohm Max |
| Q @ Freq | 30 @ 2.52MHz |
| Frequency - Self Resonant | 28MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
Submit your RFQ for CMH322522-100KL and get a quote within 24 hours.
