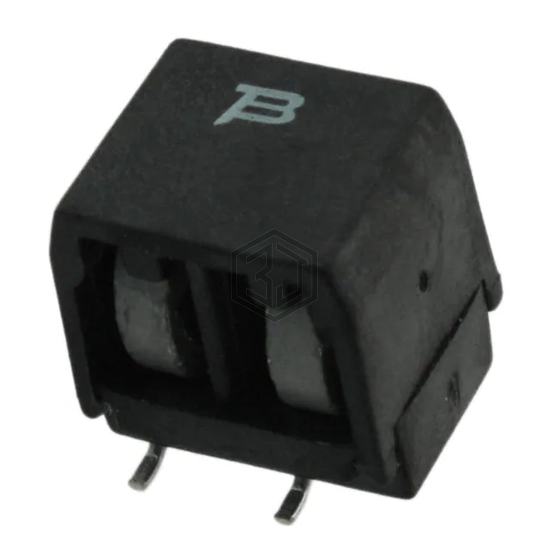

PTC RESET FUSE 230V 150MA 4SMD
CMF-SDP10A-2 is a PTC Resettable Fuses manufactured by Bourns Inc.. PTC RESET FUSE 230V 150MA 4SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 4-SMD Cube, current - max 1 A.
In Stock: 524
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Ceramic |
| Voltage - Max | 230V (250V Int) |
| Current - Max | 1 A |
| Current - Hold (Ih) (Max) | 150 mA |
| Current - Trip (It) | 360 mA |
| Time to Trip | 3.8 s |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Resistance - 25°C (Typ) | 10 Ohms |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD Cube |
| Size / Dimension | 0.344" L x 0.283" W (8.75mm x 7.20mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.402" (10.20mm) |
| Lead Spacing | - |
