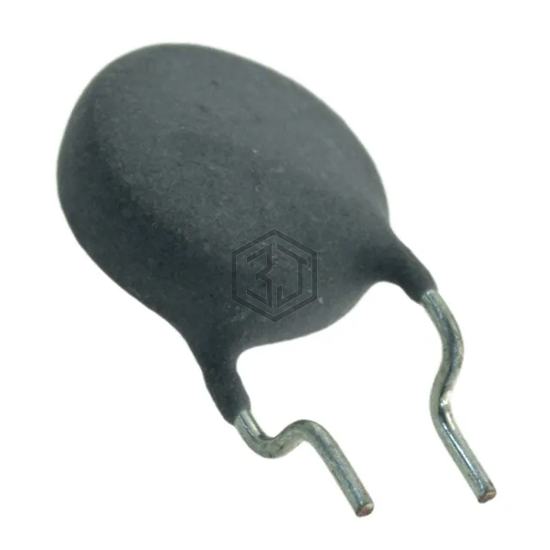

PTC RESET FUSE 220V 75MA RADIAL
CMF-RL35-0 is a PTC Resettable Fuses manufactured by Bourns Inc.. PTC RESET FUSE 220V 75MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Disc, current - max 3 A.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Ceramic |
| Voltage - Max | 230V (600V Int) |
| Current - Max | 3 A |
| Current - Hold (Ih) (Max) | 80 mA |
| Current - Trip (It) | 220 mA |
| Time to Trip | 150 ms |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Resistance - 25°C (Typ) | 35 Ohms |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.386" L x 0.197" W (9.80mm x 5.00mm) |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.200" (5.08mm) |
