RESHIGHPOWER 0805 560R 1% 1/2W T

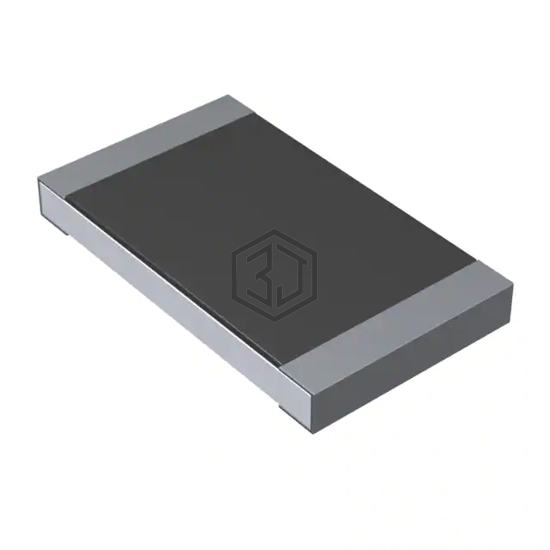

CHP0805-FX-5600ELF is a Chip Resistor - Surface Mount manufactured by Bourns Inc.. RESHIGHPOWER 0805 560R 1% 1/2W T. Key specifications: operating temperature -55°C ~ 155°C, package / case 0805 (2012 Metric), size / dimension 0.079" L x 0.049" W (2.00mm x 1.25mm), power (watts) 0.5W, 1/2W.
In Stock: 1,596
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Thick Film |
| Features | Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | - |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CRCW0805560RFKEAHP | Vishay Dale | RES SMD 560 OHM 1% 1/2W 0805 | 100% | View |
| SWR06JTEU5600 | Viking Tech | RES 560 OHM 5% 1/2W 1206 | 96% | View |
| CR2010-JW-561ELF | Bourns Inc. | RES SMD 560 OHM 5% 1/2W 2010 | 91% | View |
| RS73G2BTTD5600F | KOA Speer Electronics, Inc. | RES 560 OHM 1% 1/3W 1206 | 78% | View |
| RC0805FR-07560RL | YAGEO | RES 560 OHM 1% 1/8W 0805 | 69% | View |
| AR0805FR-07560RL | YAGEO | RES SMD 560 OHM 1% 1/8W 0805 | 69% | View |
Submit your RFQ for CHP0805-FX-5600ELF and get a quote within 24 hours.
