RESHIGHPOWER 0603 560R 1% 1/3W T

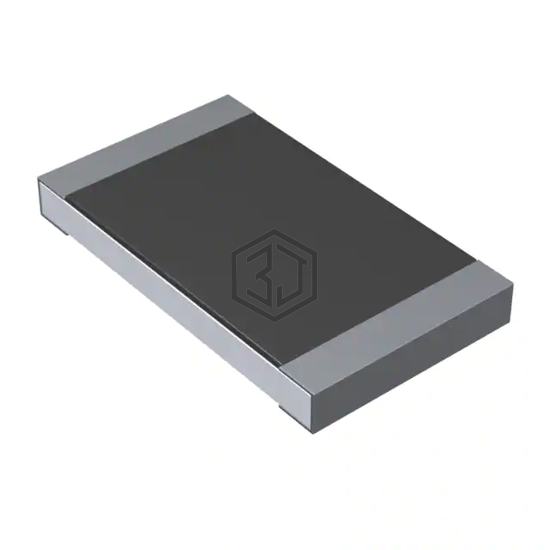

CHP0603-FX-5600ELF is a Chip Resistor - Surface Mount manufactured by Bourns Inc.. RESHIGHPOWER 0603 560R 1% 1/3W T. Key specifications: operating temperature -55°C ~ 155°C, package / case 0603 (1608 Metric), size / dimension 0.063" L x 0.031" W (1.60mm x 0.80mm), power (watts) 0.333W, 1/3W.
In Stock: 6,408
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 0.333W, 1/3W |
| Composition | Thick Film |
| Features | Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | - |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| WR12X5600FTL | Walsin Technology Corporation | RES 560 OHM 1% 1/4W 1206 | 81% | View |
| RMCF1206FG560R | Stackpole Electronics Inc | RES 560 OHM 1% 1/4W 1206 | 81% | View |
| ERJ-S03J561V | Panasonic Electronic Components | RES SMD 560 OHM 5% 1/10W 0603 | 69% | View |
| RCS1608F561CS | Samsung Electro-Mechanics | RES 560 OHM 1% 1/10W 0603 | 69% | View |
| RCP0505W560RJET | Vishay Dale | RES SMD 560 OHM 5% 1.4W 0505 | 68% | View |
| RCP0505B560RGEC | Vishay Dale | RES SMD 560 OHM 2% 1.4W 0505 | 68% | View |
Submit your RFQ for CHP0603-FX-5600ELF and get a quote within 24 hours.
