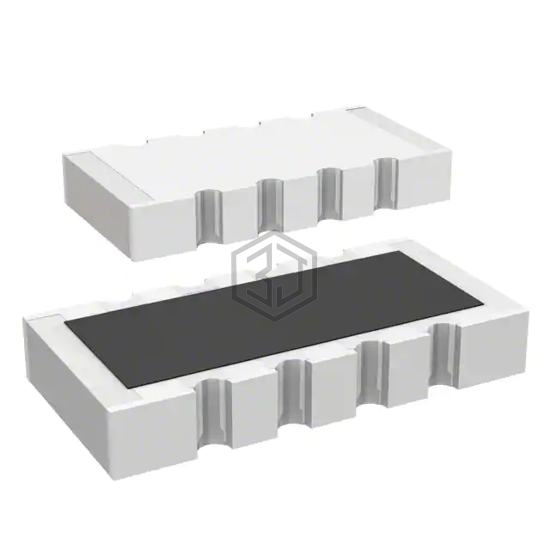

RES ARRAY 8 RES 4.7K OHM 1206
CAY17-472JALF is a Resistor Networks, Arrays manufactured by Bourns Inc.. RES ARRAY 8 RES 4.7K OHM 1206. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case 1206 (3216 Metric), Convex, Long Side Terminals, size / dimension 0.126" L x 0.063" W (3.20mm x 1.60mm).
In Stock: 24,434
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit Type | Bussed |
| Resistance (Ohms) | 4.7k |
| Tolerance | ±5% |
| Number of Resistors | 8 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 10 |
| Power Per Element | 62.5mW |
| Temperature Coefficient | ±250ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Convex, Long Side Terminals |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
