RESARRAY 4X0603 14K 1% 63MW CONC

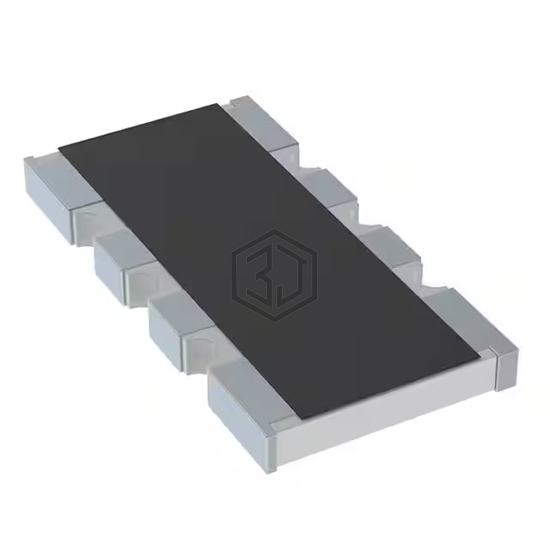

CAT16-1402F4LF is a Resistor Networks, Arrays manufactured by Bourns Inc.. RESARRAY 4X0603 14K 1% 63MW CONC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1206 (3216 Metric), Convex, Long Side Terminals, size / dimension 0.126" L x 0.063" W (3.20mm x 1.60mm).
In Stock: 2,955
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 14k |
| Tolerance | ±1% |
| Number of Resistors | 4 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 8 |
| Power Per Element | 63mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Convex, Long Side Terminals |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
Submit your RFQ for CAT16-1402F4LF and get a quote within 24 hours.
